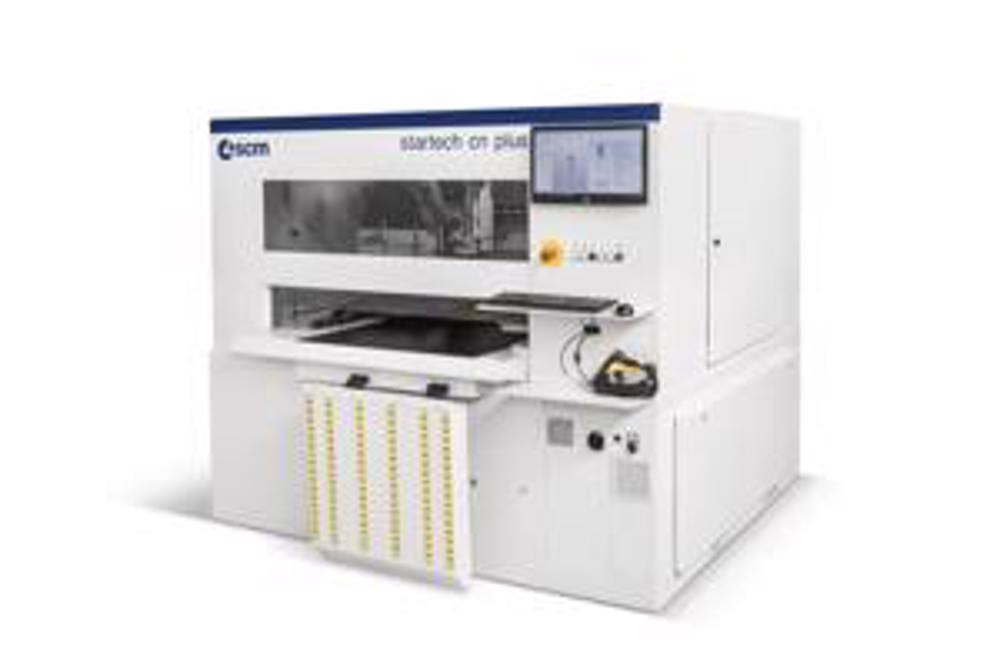

STARTECH CN PLUS
35865.00 EUR


About

startech cn plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 8 independent vertical spindles, the 6 horizontal spindles, the blade in "X" . There is a machine version with router.

FLEXIBLE: IDEAL SOLUTION FOR TAILORED PRODUCTIONS
No operator's intervention for the worktable and machine set-up according to the panel dimensions.

PERFORMING: TOP PERFORMANCE
Tooling and machining operations reduced to the minimum, with 40 m/min axes speed.

COMPACT: VERY REDUCED MACHINE OVERALL DIMENSIONS
With its 5 m2 overall dimensions, it can be installed in reduced spaces.

SIMPLE: AT EVERYBODY'S REACH
Easy-to-use machine and for every investment capability.

Description
Effective:
The operating unit above the panel allows a very precise and cleaned working. Furthermore any panel thickness imperfection is hidden inside the furniture (part not in sight).

Maximum versatility:
The machine version with routing unit with electrospindle 5.5 kW motor power is suitable for all machining.

Totally automatic:
thanks to the automatic side alignment device the panel is loaded, into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator.

A "Maestro" at your disposal: 19" PC with integrated software.
The SCM "Maestro cnc" software allows to create projects and geometrical drawings to be automatically converted in drilling-routing programs for the machine.
Technical data

Technical data
Max./min. panel dimensions in X-Y-Z mm 3050x900x60 / 200x80x10
Drilling/grooving working area m/min 40/40/10
Vertical spindles no. 8 (5X-3Y)
Horizontal spindles no. 6 (2+2X-2Y)
Blade, diameter/thicknesser mm 125/6
Spindles/blade rotating speed g/min 4200/5500
Electrospindle rotating speed g/min 18.000
Power KVA 15,2 (20,7 with electrospindle)
