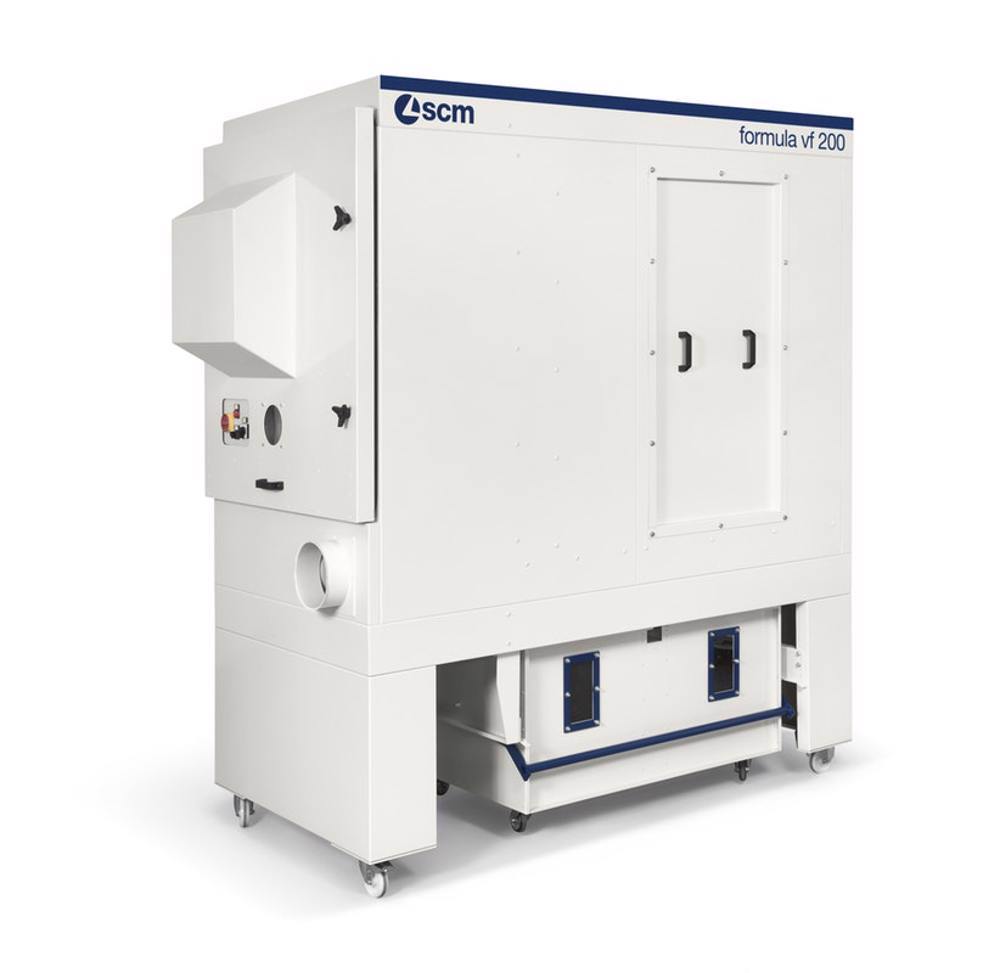

VF 200
Autentification needed
Code :
VF 200
5453.00 EUR
About
The vf clean air dust extractors are specially designed to work in the woodworking shops, guaranteeing a level of dust emissions lower than 0.1 mg / m3.
Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.
Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.
Description
Technical data
Technical data
| vf 125 | vf 140 | vf 160 | vf 200 | vf 250 | vf 300 | |
| Nominal Air Flow @ 20 m/sec. [m3/h*] | 850 | 1100 | 1450 | 2300 | 4000 | 6000 |
| Nominal Pressure [Pa] | 2350 | 2200 | 2350 | 2350 | 2800 | 3300 |
| Maximum Air flow @ 20 m/sec. [m3/h*] | 3500 | 4000 | 6000 | 6300 | 6600 | 8000 |
| Pressure @ Maximum air flow [Pa] | 800 | 900 | 600 | 800 | 1600 | 1800 |
| Dimensions [mm] (Length x Width x Height) | 886x840x2185 | 886x840x2185 | 2305x1070x2438 | 2305x1070x2438 | 2525x1150x2439 | 3435x1150x2439 |
| Filtering Surface [m2] (Antistatic) | 5 | 10 | 12 | 15 | 20 | 30 |
| Air Inlet diameter Ø [mm] | 125 | 140 | 160 | 200 | 250 | 300 |
| Residual dust level [mg/m3] | <0,1 | <0,1 | <0,1 | <0,1 | <0,1 | <0,1 |
| Storage Volume [l] | 185 | 185 | 2x185 | 2x185 | 2x270 | 3x270 |
| Fan Power [kW] | 2,2 kW 3F | 2,2 kW 3F | 3 kW 3F | 4 kW 3F | 5,5 kW 3F | 7,5 kW 3F |
| Atex | - | - | - | - | opz/opt/Opt | opz/opt/Opt |
