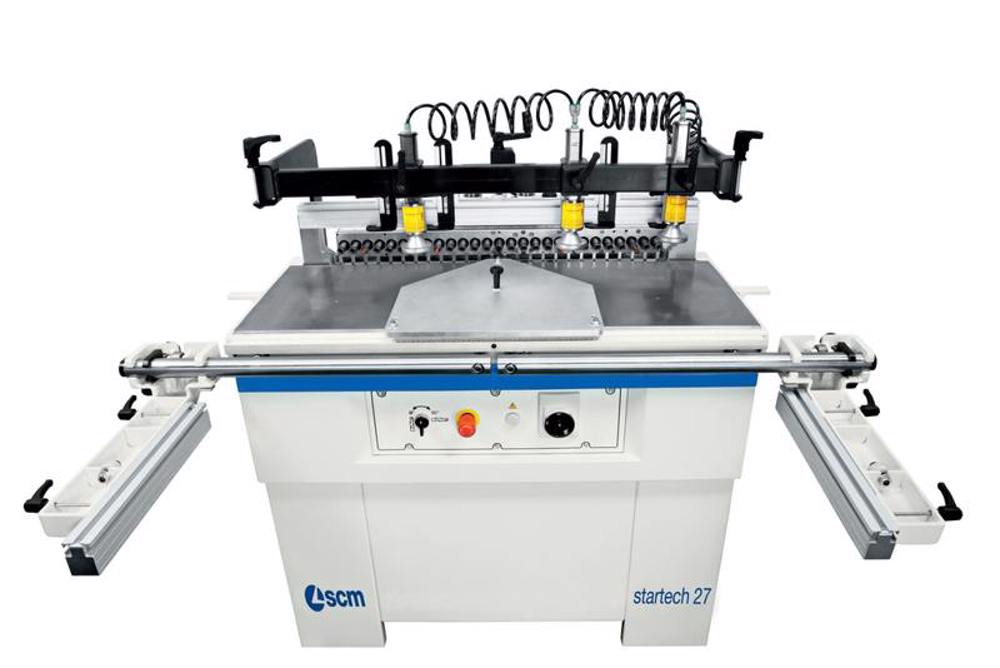

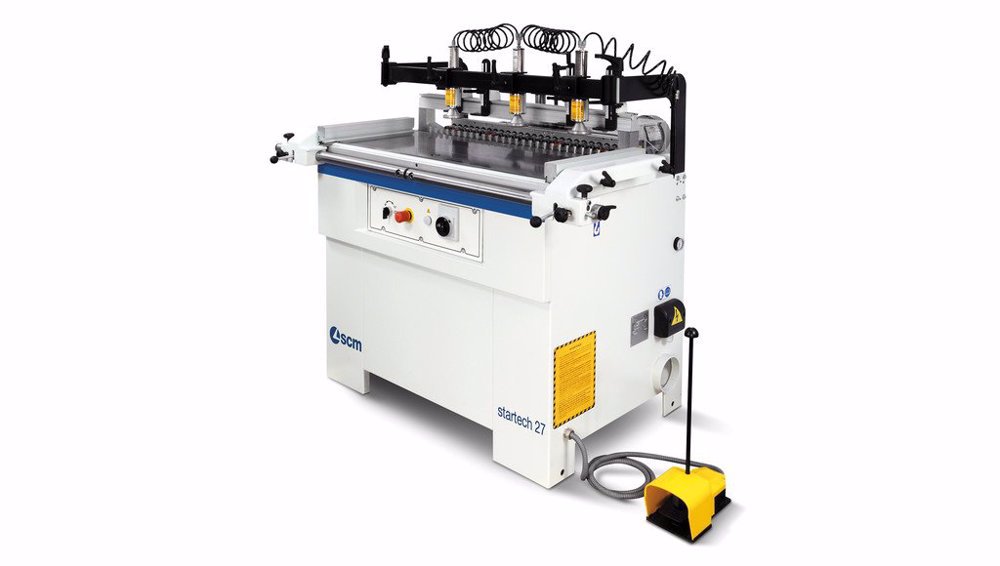

STARTECH 27
Autentification needed
Code :
STARTECH 27
6165.00 EUR
About
Ideal for boring operations on panel.
New models with 27 and 21 spindles.
Rich basic equipment: it is complete with all accessories such as pnematic head adjustment, spindles with quick attachment, lateral guides L=3mm with reference stops for panel positioning.
New models with 27 and 21 spindles.
Rich basic equipment: it is complete with all accessories such as pnematic head adjustment, spindles with quick attachment, lateral guides L=3mm with reference stops for panel positioning.
Description
Convenient selector,as standard, for the 0°- 45°- 90° automatic pneumatic head rotation.

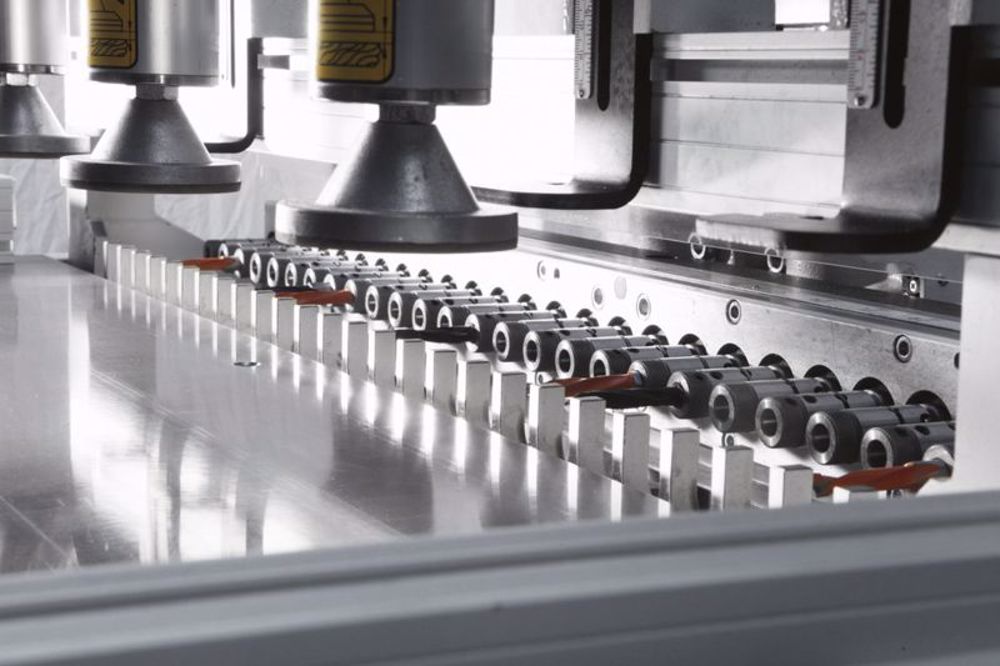

Rapid set up due to the 21/27 spindles with quick-release fittings.

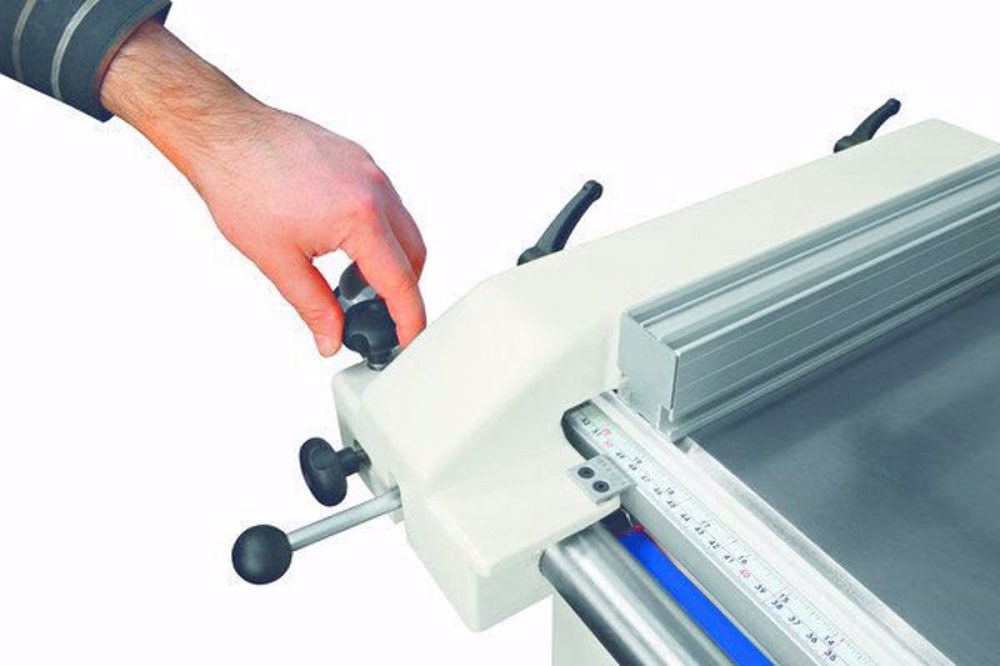

Precise and practical with the nonius decimal scale and micrometric guides travel.
5 position revolving turret for always setting the correct depth.
Technical data
Technical data
| Startech | 27 | 21 | |
| Number of spindles | n. | 27 | 21 |
| Centre distance between spindles | mm | 32 | 32 |
| Spindles rotating speed | rpm | 3000 | 2800 |
| Spindles motor power | Hp | 2 | 2.4 |
