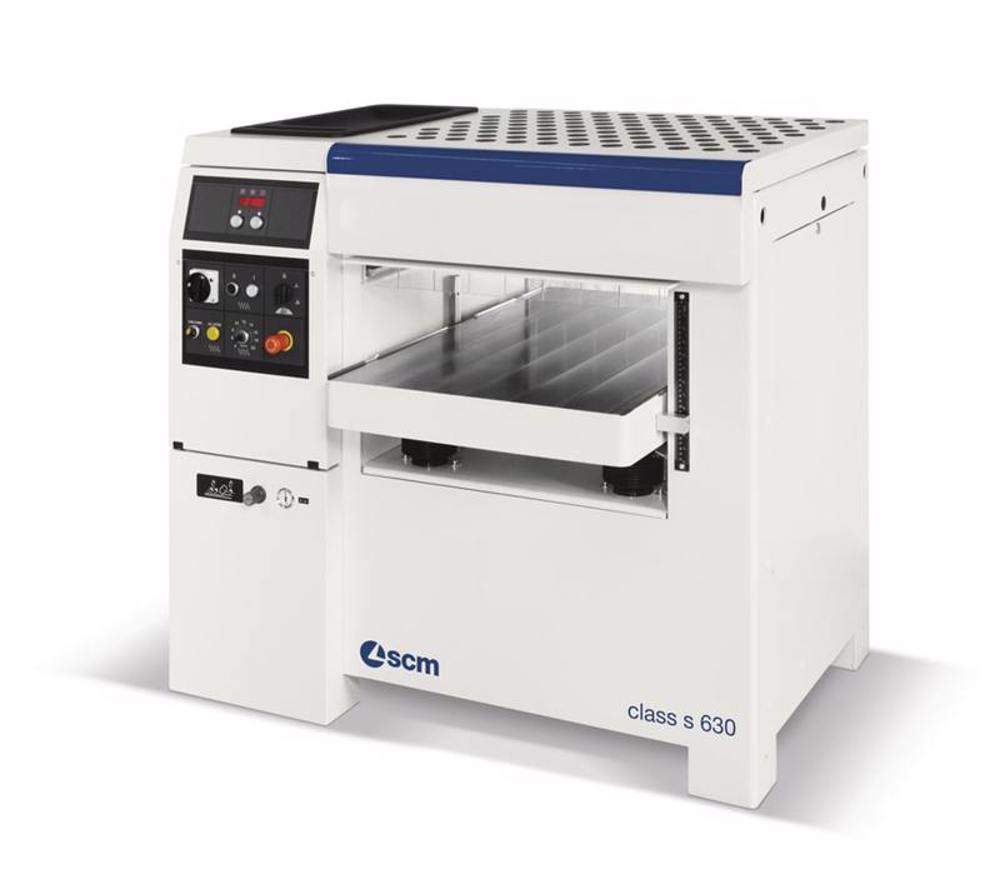

CLASS S630
Autentification needed
Code :
CLASS S630
13233.00 EUR


About

The best solution for every application.
Easy and precise, practical design, a wider range of applications.

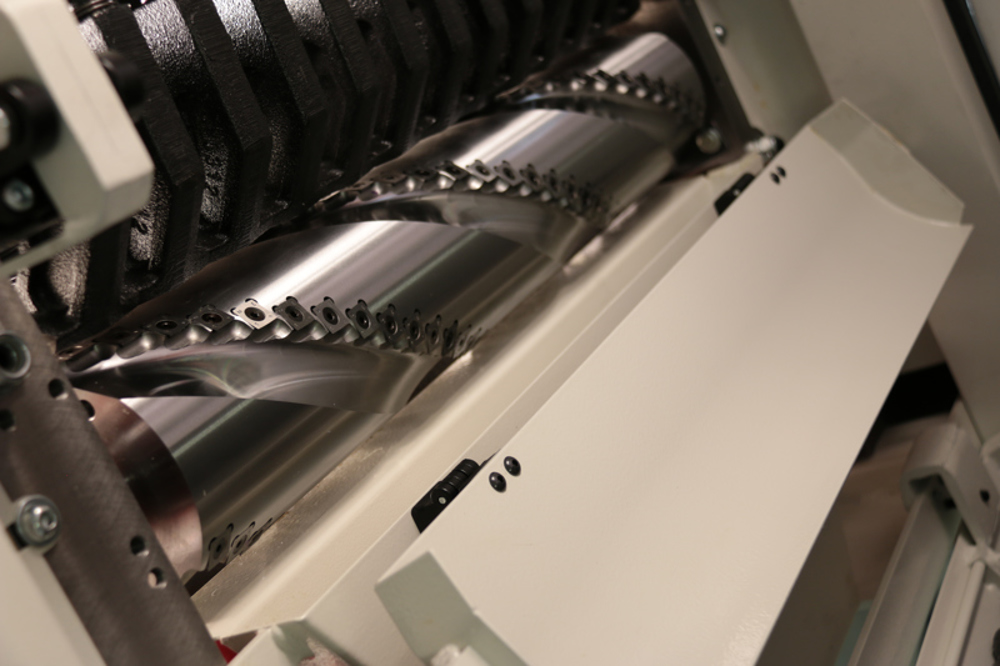

Discover the "Xylent" cutterhead, available for this machine.

Description

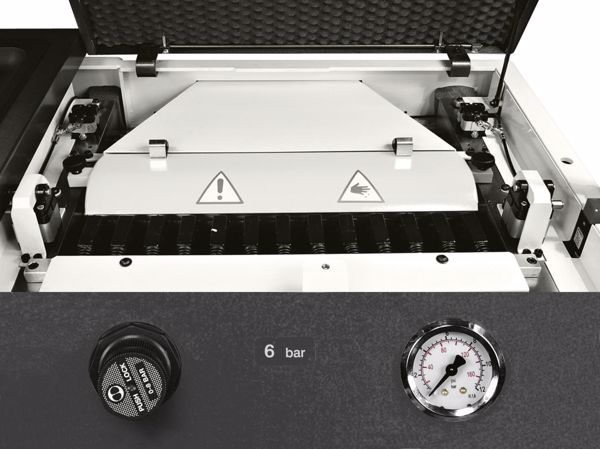

The best finish and effectiveness of the feedingof any material and in any working condition thanks to the pneumatic adjustment of rollers that allows to change at any time the pressure exerted on the work piece.

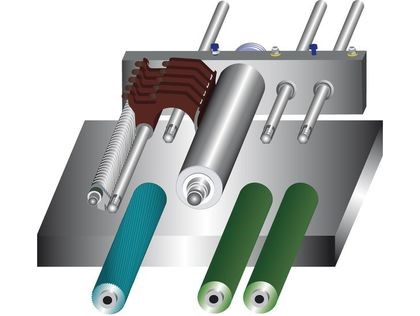

One machine for every requirement with the interchangeable rollers. Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.

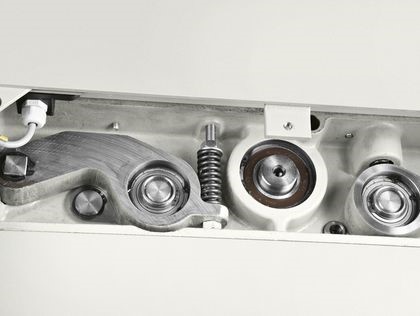

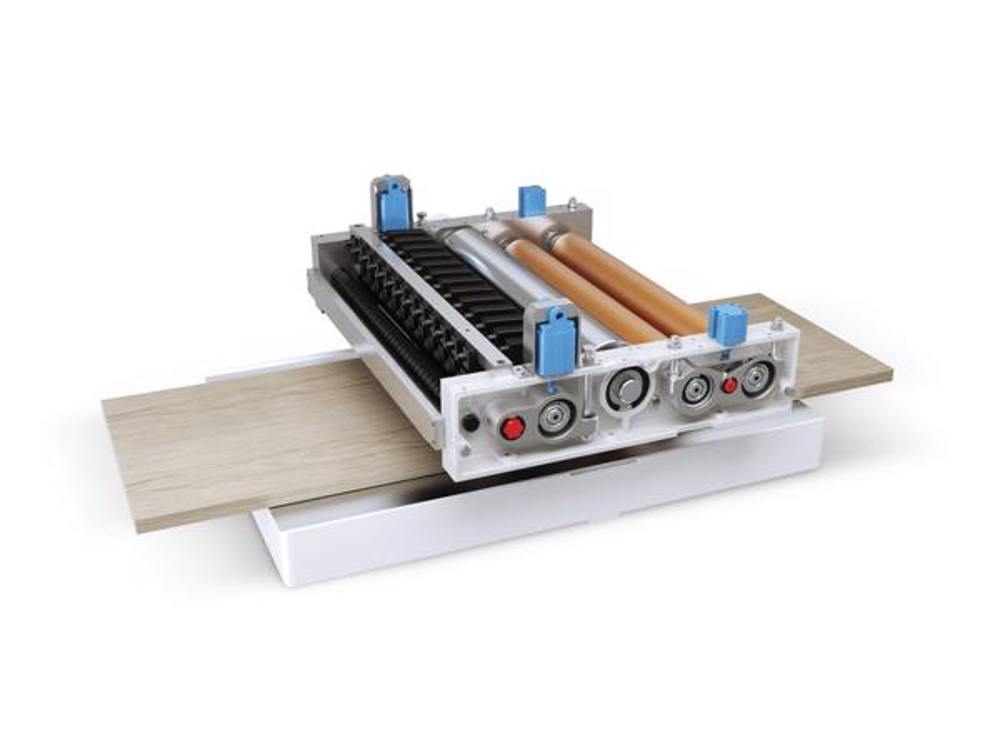

Perfect finish with the feeding rollers on connecting roads. The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding.

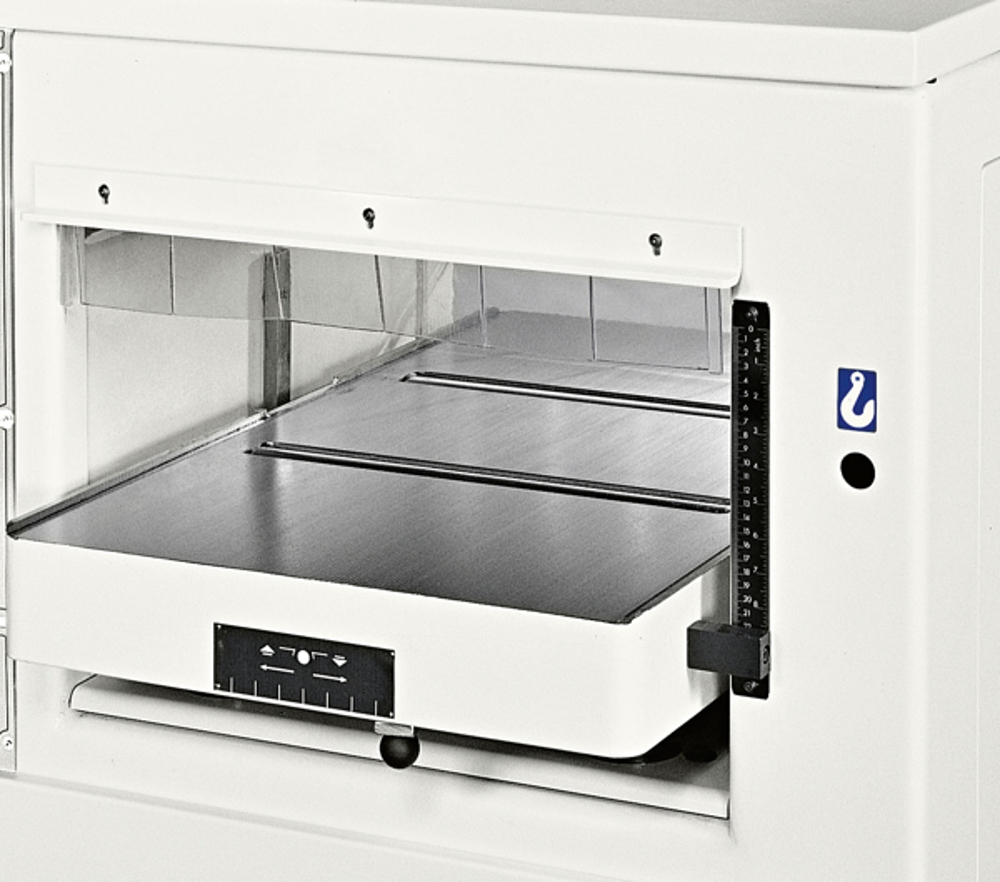

Sturdy structure with precision when moving the work table The 4 screws with a large diameter combined with the 2 side linear guides ensure worktable stability eliminating the necessity of locking in position. The integrated protections guarantee high precision and reliability over time.
Technical data

Technical data
class s 630   s 630
Cutterhead working width mm 630

With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/4
630 x 30 x 3

With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimension of standard knives


mm/n°
mm

120/105
15 x 15 x 2.5
Min. - max. planer working height mm 3.5 - 300
Planer feed speed m/min 4 - 20
Three-phase motor Hp 12
