FORMULA SP1
Autentification needed
Code :

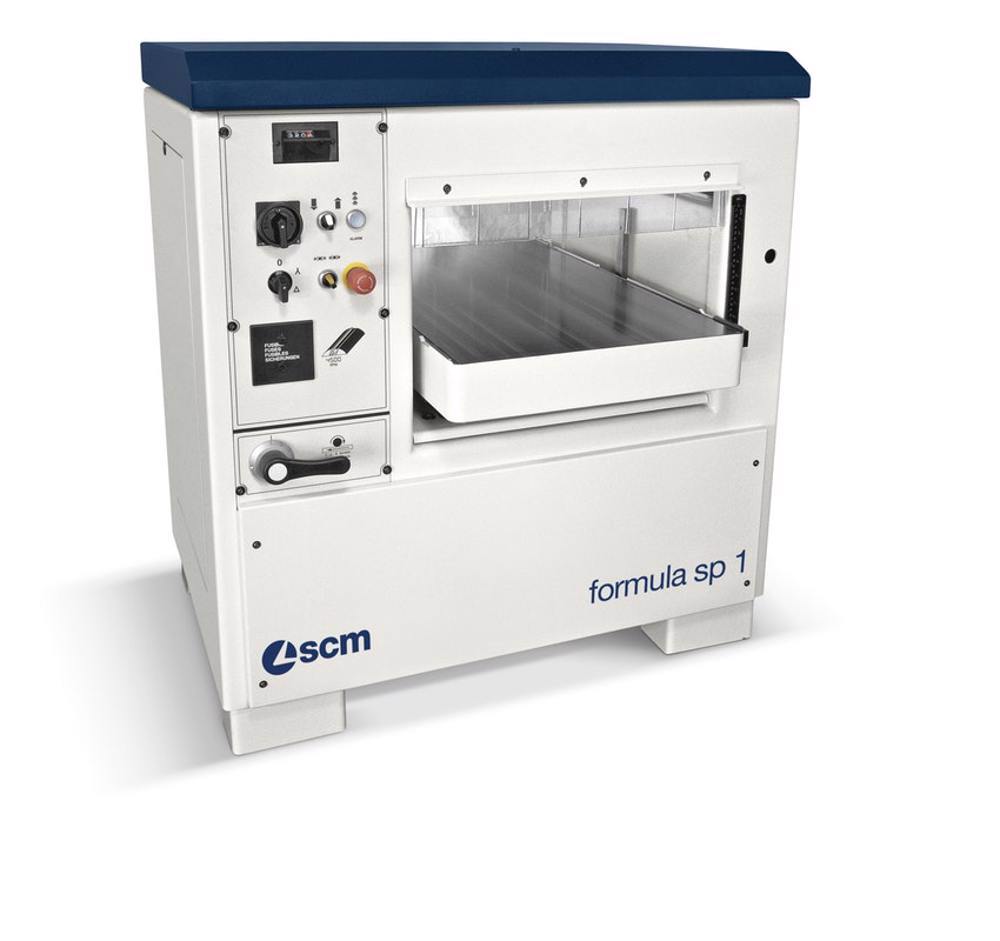

FORMULA SP1
9428.00 EUR


About
The thicknessing planers of formula series guarantees sturdiness but also easy-to-use and precise, stylish with practical design, a wide range of applications.
Description
Ease-of-use
All the controls are in an ergonomic position on the front of the machine such as the feed speed selector, the electric work height adjustment and a mechanical digital readout of working height.
Sturdy structure with precision

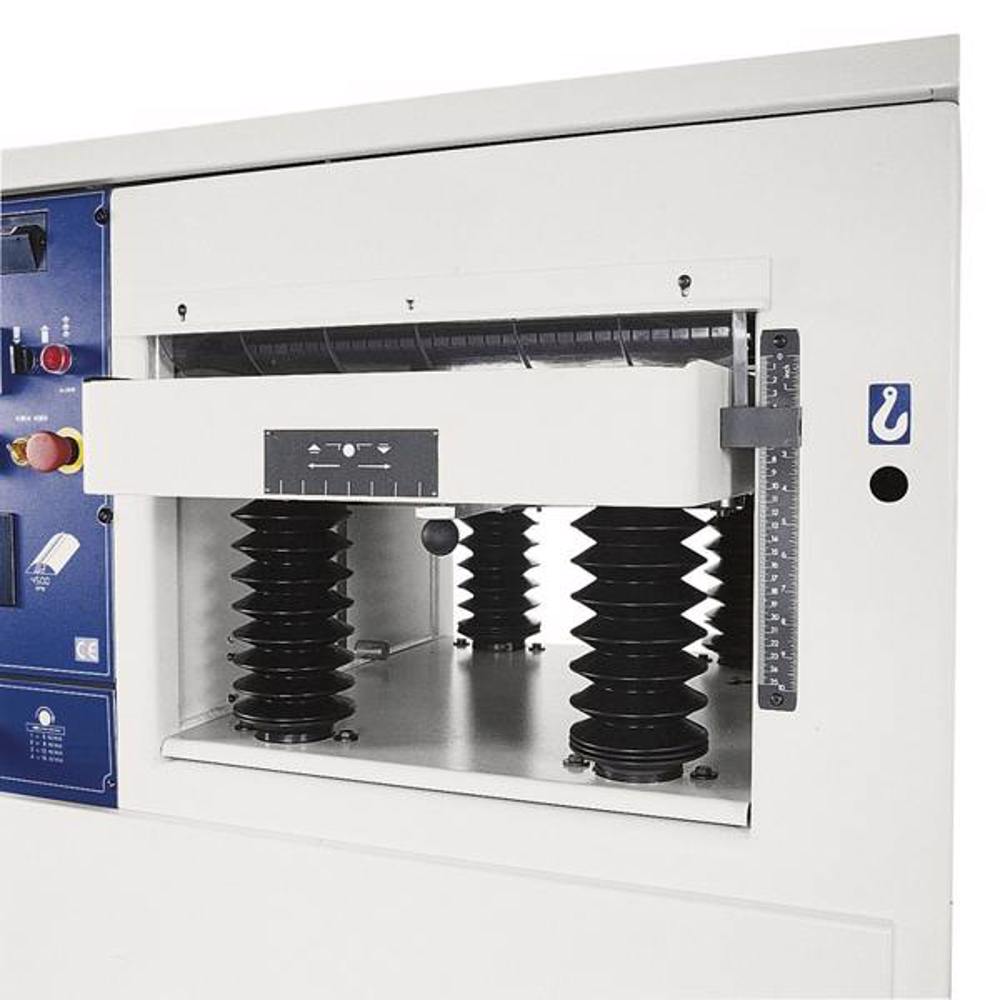

The ground, cast-iron work table is mounted on four recirculating ball screws simultaneously driven by achain guaranteeing the best working stability. The machines in CE version are equipped with electric adjustment as standard feature; a solution offering ease-of-use, precise and rapid set-up.

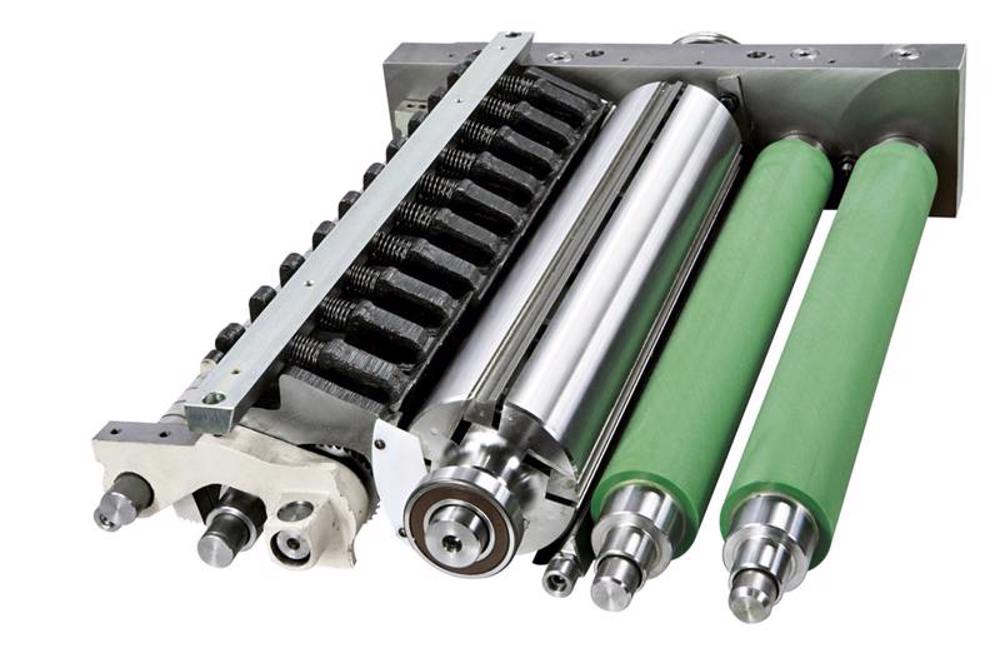

Exceptional finish “Xylent” spiralknife cutter block with 3 spiralknives. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data

Technical data
formula   sp 2 sp 1
Working width mm 630 520
Maximum stock removal mm 8 8
Work table length mm 1000 1000
Working height mm 300 250
Feed speed m/min 5/8/12/18 5/8/12/18
Motor power with manual star-delta start kW 7 7
