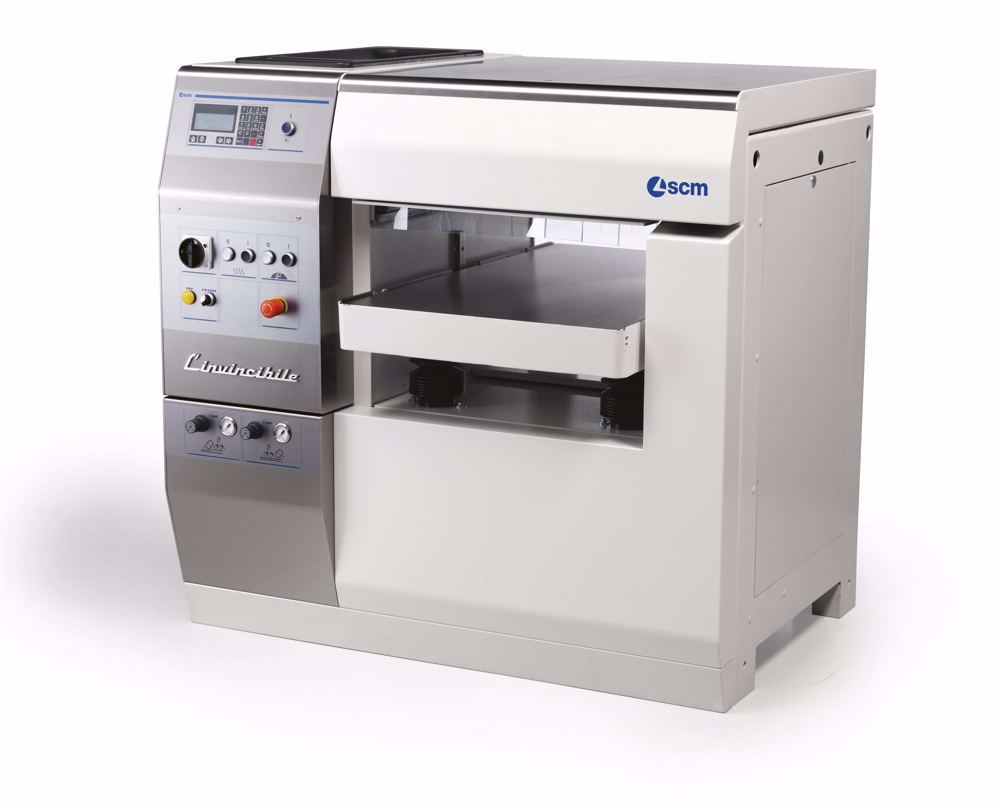

L'invincibile S 7
15340.00 EUR


About
The advantages of an exclusive choice.
Buying a "L'invincibile" machine means you get a customized solution, thanks to experience, technical research and Italian creativity.

Discover the "Xylent" cutterhead, available for this machine.
Description

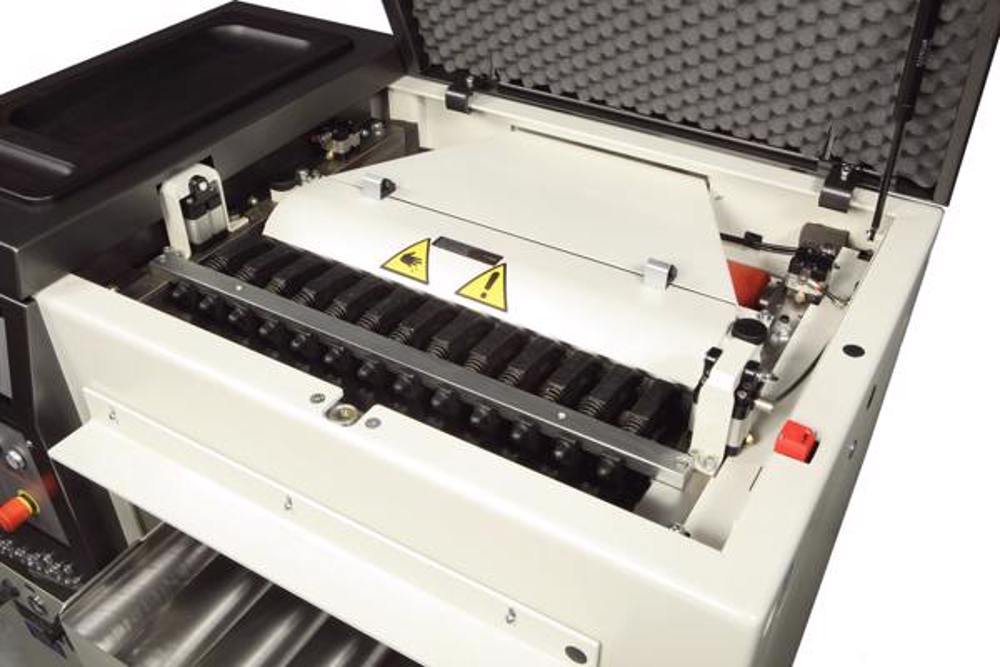

The best finish and effectiveness of the feeding of any material and in any working condition thanks to the pneumatic adjustment. The unique ability to differentially set the pressure on the infeed and outfeed rollers, allows to change at any time the pressure exerted on the work piece.
One machine for every requirement with the interchangeable rollers. Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.
Best finish at maximum speed with the electronic adjustment of the feed speed.

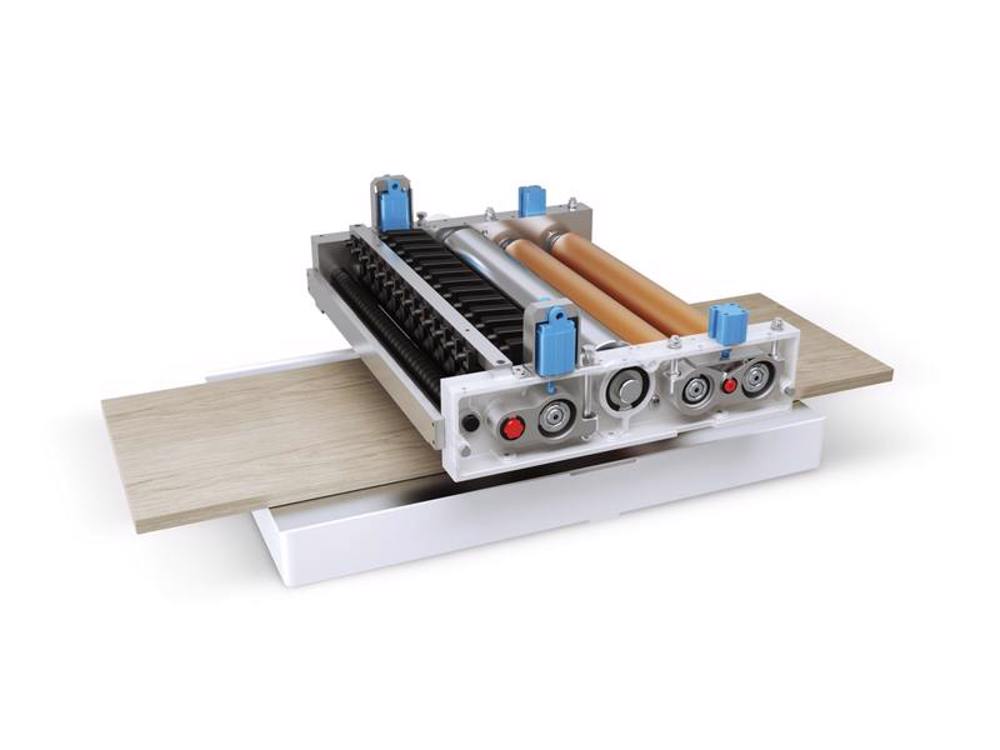

Feeding rollers on connecting roads: perfect finish. The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding.
Technical data

Technical data
L'invincibile s 7
Cutterhead working width mm / inches 630 /24

With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/4
630 x 35 x 3

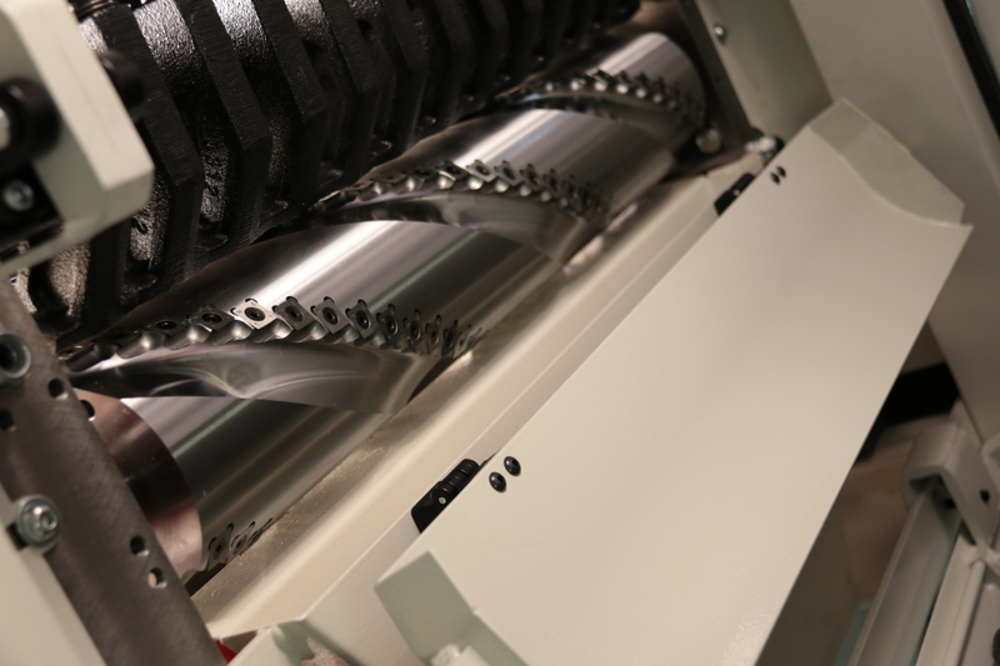

With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/84
15 x 15 x 2.5
Min. - max. planer working height mm / inches 3.5 - 300 / 1 / 3 - 11.75
Planer feed speed m/min 4 - 20
Three-phase motor Hp 15
Max. stock removal mm 8
