NOVA S520
Autentification needed
Code :
NOVA S520
9966.00 EUR


About
Guaranteed quality at your finger tips.
Easy and precise, practical design, a wider range of applications.
Description

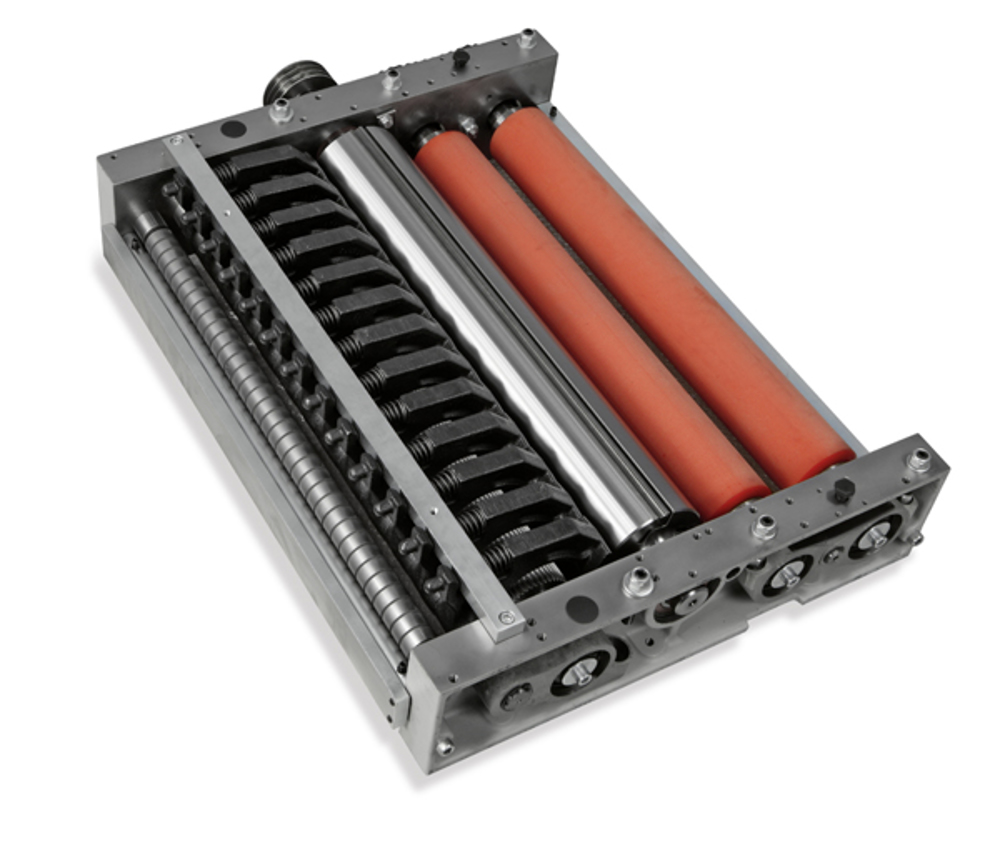

One machine for every requirement with the interchangeable rollers. Quik and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed

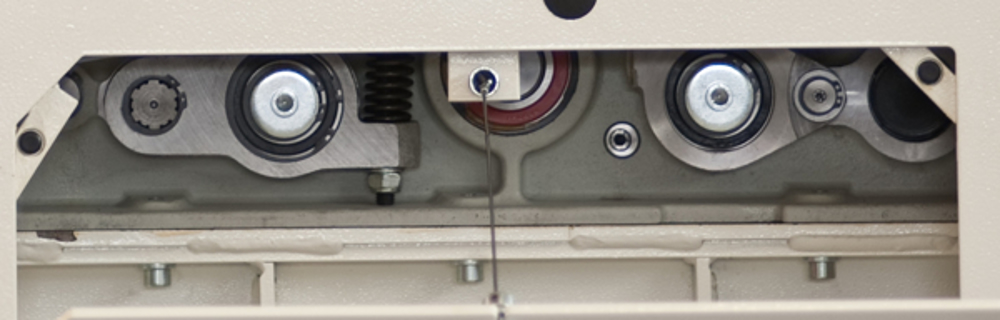

Perfect finish with the feeding rollers on connecting roads. The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding.
Sturdy structure with precision when moving the work table. The 4 screws with a large diameter combined with the 2 side linear guides ensure worktable stability eliminating the necessity of locking in position. The integrated protections guarantee high precision and reliability over time.

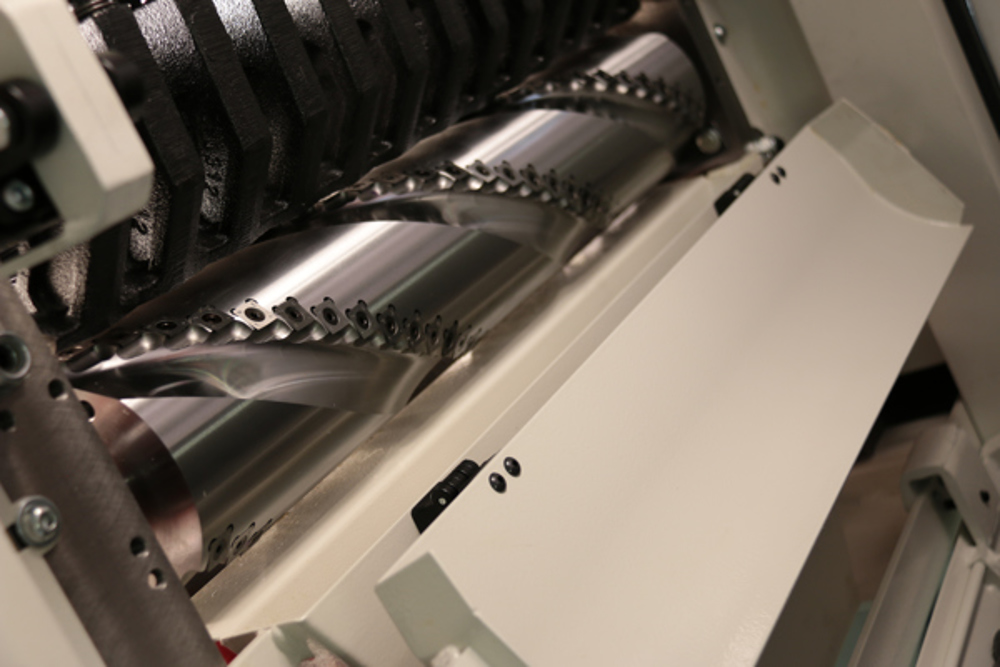

Exceptional finish with the “Xylent” spiral knife (3 spiral knives) Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data

Technical data
nova   s 520
Cutterhead working width mm / inches 520 / inches

With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives


mm/n°
mm

120/4
520 x 30 x 3

With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimension of standard knives


mm/n°
mm

120/84
15 x 15 x 2.5
Min. ÷ max. working height on thicknesser mm / inches 3.5 - 300
Feed speed on thicknesser m/min 5/8/12/18
Three-phase motor Hp 11
Max. stock removal mm 8
